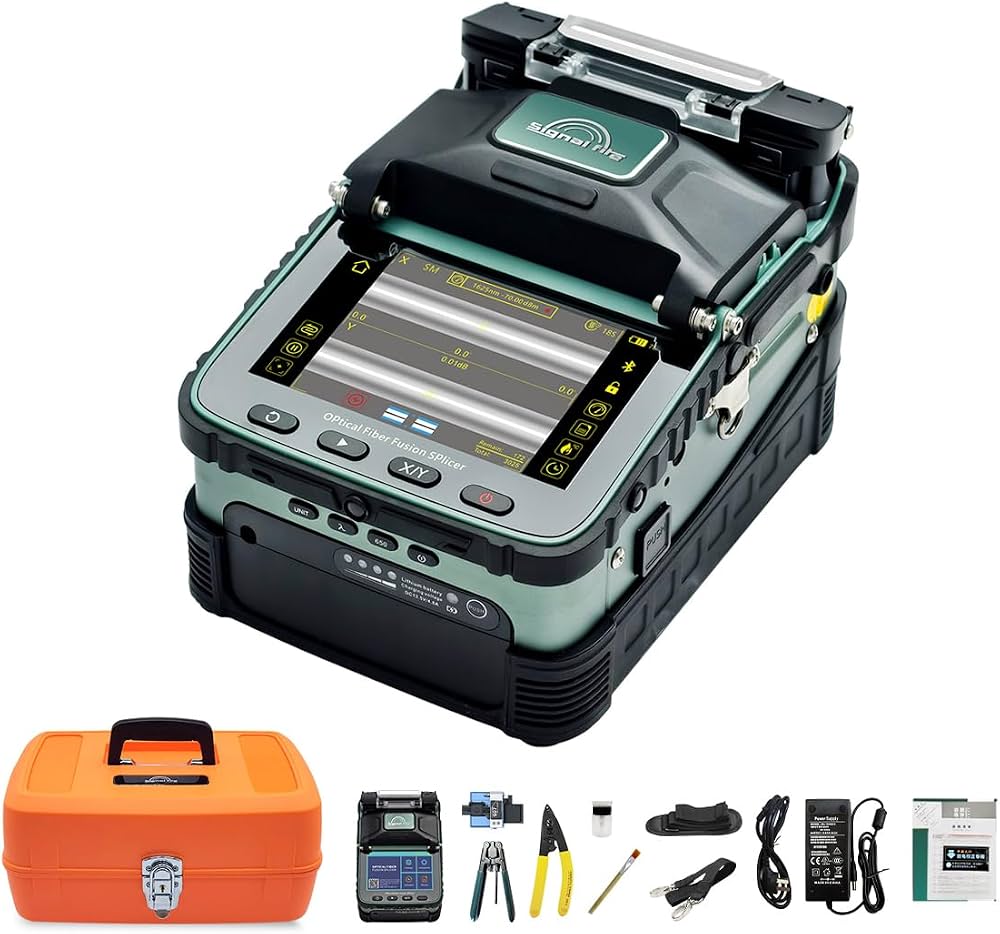

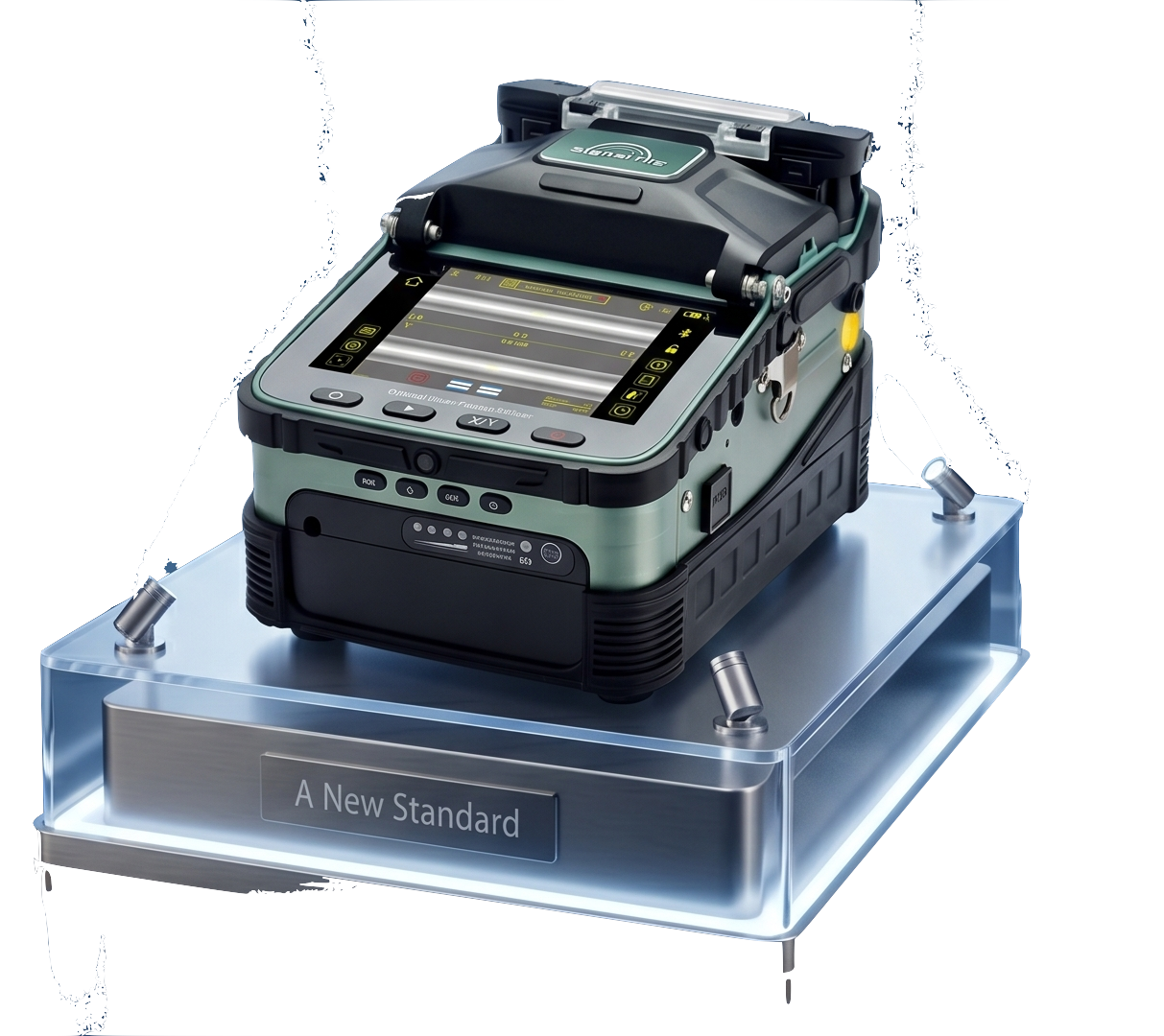

The DBC AI-6 (AI-6C) is a core-alignment 6-motor fusion splicer widely used for FTTx deployment, trunk line installation, and field maintenance.

Key Technical Specifications

Feature Specification
Alignment Method High-precision Core-to-Core Alignment (6 Motors)
Splice Time 8 sec
Heating Time 18 s
Average Splice Loss SM (G.652): 0.02  dB}$ | MM (G.651): 0.1
Fiber Magnification $300\times$ (X or Y view), $150\times$ (X and Y combined)
Supported Fibers Single Mode (SM), Multimode (MM), DS, NZDS, Drop Cables, Pigtails
Fiber Holder 3-in-1 universal fixture (Bare fiber, Drop cable, Patch cord)
Battery Capacity $5200 \text{ mAh}$ lithium battery ($\approx 160\text{--}200$ splice & heat cycles)
Display High-resolution color TFT screen
Connectivity Bluetooth (Mobile App management) & USB (Data export / Phone charging)

Core Features & Highlights

  • 6-Motor Core Alignment: Utilizes high-precision motorized core positioning to ensure optimal light throughput and minimal insertion loss.

  • Fast Boot & Processing: Rapid boot-up time ($\approx 1 \text{ second}$) for quick field operations.

  • Dual Charging & Power Output: Features a removable battery with dual charging protection and a USB output port that acts as a power bank for phones or external LED work lights.

  • Smart App Management: Pairs with a mobile smartphone app over Bluetooth to track splice counts, cloud storage logs, device locking, and remote management.

  • Rugged Outdoor Design: Built for field environments with dust-proof, shock-resistant, and drop-resistant housing.
