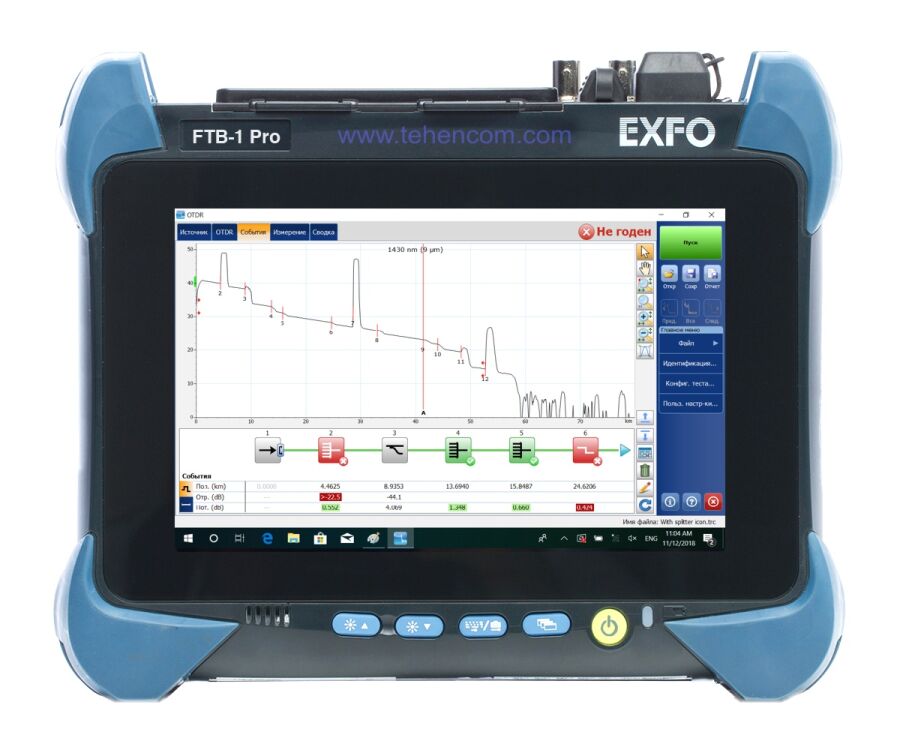

Compact modular measurement platform EXFO FTB-1v2 Pro designed for detailed analysis of fiber optic lines (including reflectometry, optical spectrum, insertion and return loss), as well as all data transfer protocols up to 111.81 Gb / s. Depending on the platform modification (SC, DC or HPDC), one or two single thickness FTBx measurement modules or one double thickness FTBx module can be installed in it. Module types determine the measurement capabilities of the platform.

Compatible with the EXFO FTB-1v2 Pro measuring platform, five optical reflectometer modules (series FTBx-700C), including a unique variable wavelength reflectometer module FTBx-740C, several modules for optical loss measurement and fiber certification (series FTBx-940 and FTBx-945), one optical spectrum analysis module FTBx-5235, two modules for protocol analysis with data rates up to 11.318 Gbps (FTBx-8880 and FTBx-8870) and two protocol analysis modules with data rates up to 111.81 Gbps (FTBx-88200NGE and FTBx-88260). In addition, a video microscope can be connected to the platform to check the quality of optical connectors (series FIP-400B).

The EXFO FTB-1v2 Pro platform itself is a powerful computer with a quad-core processor and Windows 10 operating system. The platform is ergonomically designed and equipped with a large, high-quality touch screen with a diagonal of 20.3 cm and a resolution of 1280 x 800. The large screen of the device greatly simplifies configuration tests and viewing measurement results, and the powerful processor quickly performs all processing. The presence of the Windows 10 operating system allows you to install any programs on the platform without restrictions. You can download a full description of all the characteristics of the EXFO FTB-1v2 Pro measuring platform below on this page in the section Documentation.
